ATLATL
SPECIFICATIONS
- FRAME: KENCH 4130 DB CRMO
-
FORK : KENCH 1-1/8", :4130 CR-MO STEERER Ø28.6MMx164MM AND 4130 SB CR-MO DROPOUT SLOT: 3/8″ (10MM)
-
HANDLEBAR : KENCH CR-MO 760x230x22.2MM
-
GRIPS : KENCH RUBBER, 135MM, INSIDE Ø22MM. W/O FLANGE
-
STEM : KENCH 6061-T6 ALLOY 1-1/8" THREADLESS CLAMP-ON , TOPLOAD,HANDLEBAR-Ø22.2MM
-
HEADSET : KENCH 1-1/8”/41. SEAL BEARINGS
-
BRAKES & LEVERS : KENCH ALLOY REAR U-BRAKES, ALLOY LEVERS
-
CRANK : KENCH CHROMOLY 170MM, 3-PIECE CRANK,31.8MM SQUARE SHAPEARM. 48T-19MM
-
PEDALS : KENCH NYLON FIBER/CR-MO SPINDLE, 9/16" THREAD,BALL BEARING. W/MOLD PIN
- CHAIN : KMC 1/2"X1/8" SINGLE SPEED, 68L
- SPROCKET : 6061-T6 ALLOY. 25T , 6MM , BLACK
- FRONT HUB : KENCH 3/8x100mm, AXLE CRMO, ALLOY END CAP 7075, 36 H
- REAR HUB : KENCH 3/8x110mm, 3/8x24T*17H*40L , 8MM, DS 7075 ALLOY , NDS 6061 ALLOY ,36 H
-
RIMS: KENCH ALUMINUM ALLOY, DOUBLE WALL ,20"(406-26)X36HX14G A/V
-
SEATPOST : KENCH ALLOY BLACK, 25.4 X 135MM , PIVOTAL SYSTEM
-
SADDLE : KENCH PIVOTAL SADDLE
-
TIRES : KENCH 20"X 2.35 30TPI-65PSI
- WEIGHT : 13.00 KG
- COLORS : GLOSSY BLACK / MATT BLACK / MATT ARMY GREEN / MATT YELLOW / MATT PURPLE / GLOSSY PURPLE / MATT BLUE / MATT MIAMI BLUE / GLOSSY FERRARI RED / GLOSSY RED / GLOSSY TIFFANY GREEN / MATT MUSTARD YELLOW / GLOSSY CEMENT GRAY / MATT BROWN
-1-(3)__24L24Dz90e.jpg "2000x670")
-(1)-1__24L24iCiVL.jpg "1035x720")
-(2)-1__24L24wY0kS.jpg "1035x720")
-(6)-1__24L24F9ifL.jpg "1035x720")

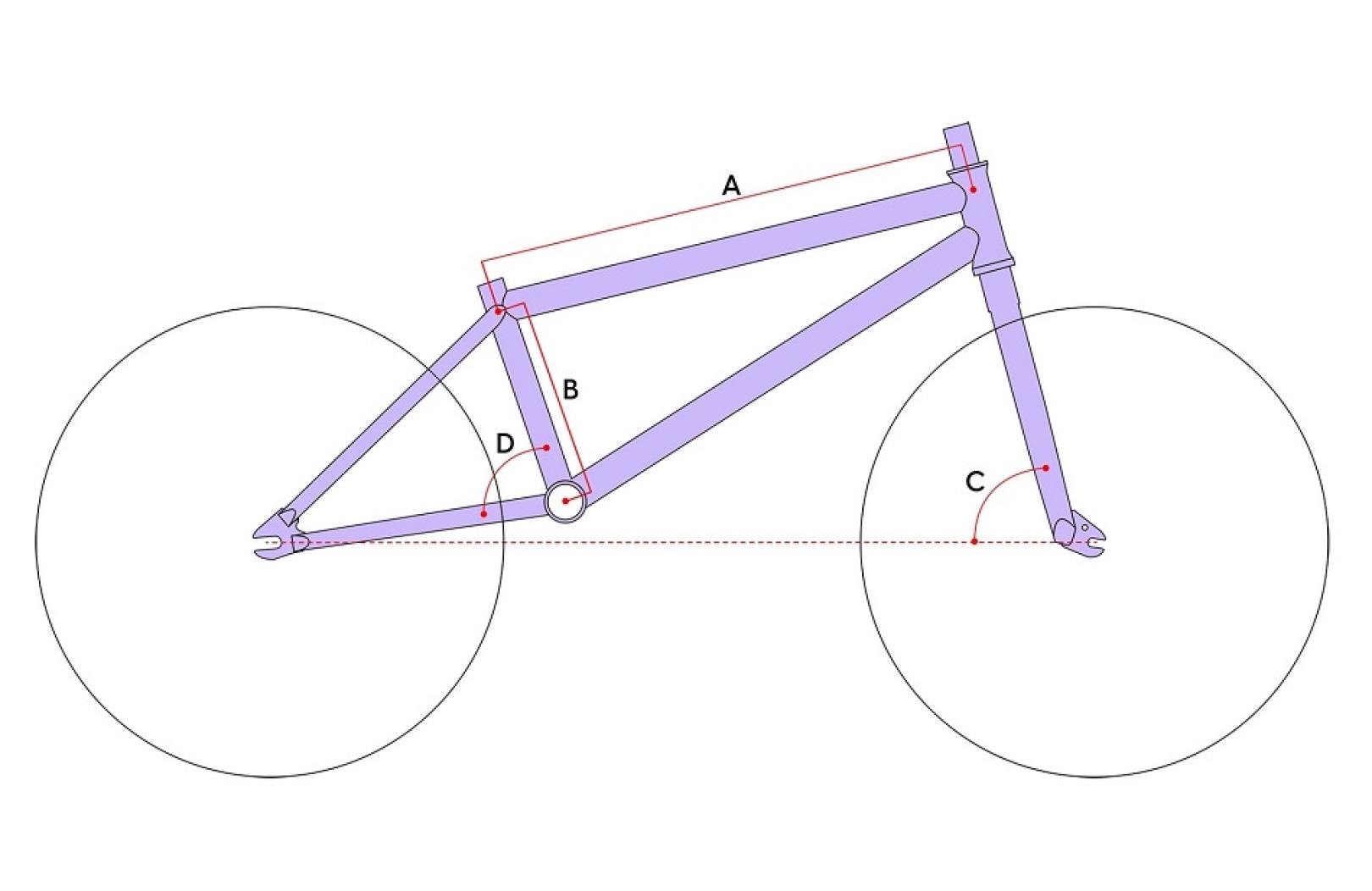

FRAME GEOMETRY
A - TOP TUBE LENGTH : 20.5" / 20.75" / 21"
B - STANDOVER HEIGHT : 8.74"
C - HEAD TUBE ANGLE : 76.25°
D - SEAT TUBE ANGLE : 79.6°
E - CHAIN STAY LENGTH : 13.22 "
HANDLEBAR GEOMETRY
F - BAR BACK SWEEP : 11.5°
G - BAR WIDTH : 29.92"
H - BAR UP SWEEP : 1.5°
I - BAR RISE : 9.06"
