MACUAHUITL
SPECIFICATIONS
- FRAME: KENCH STEEL FRAME
-

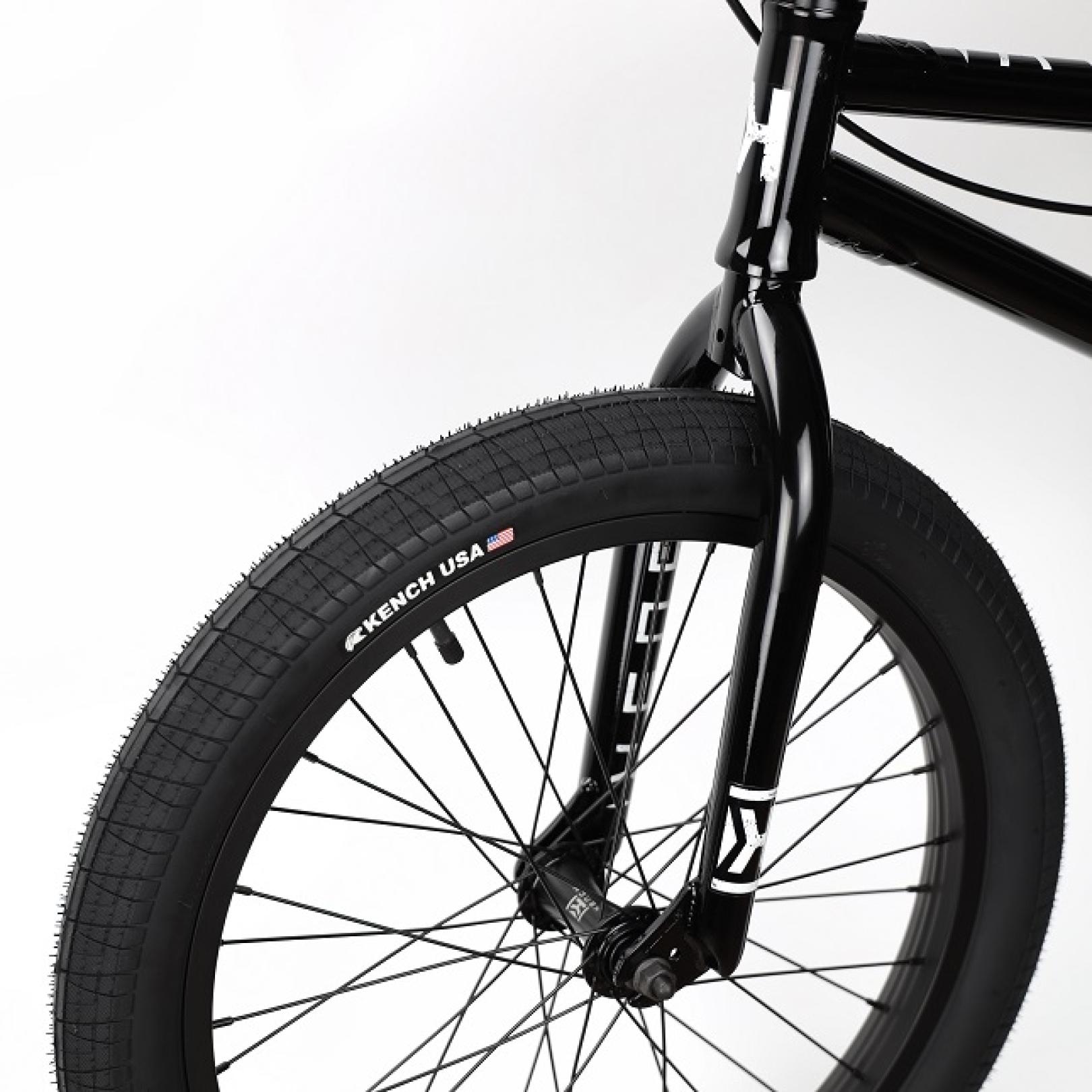

FORK : KENCH 1-1/8", :STEEL STEERER Ø28.6MM*164MM AND STEEL-11A BODY. DROPOUT SLOT: 3/8″ (10MM).
-

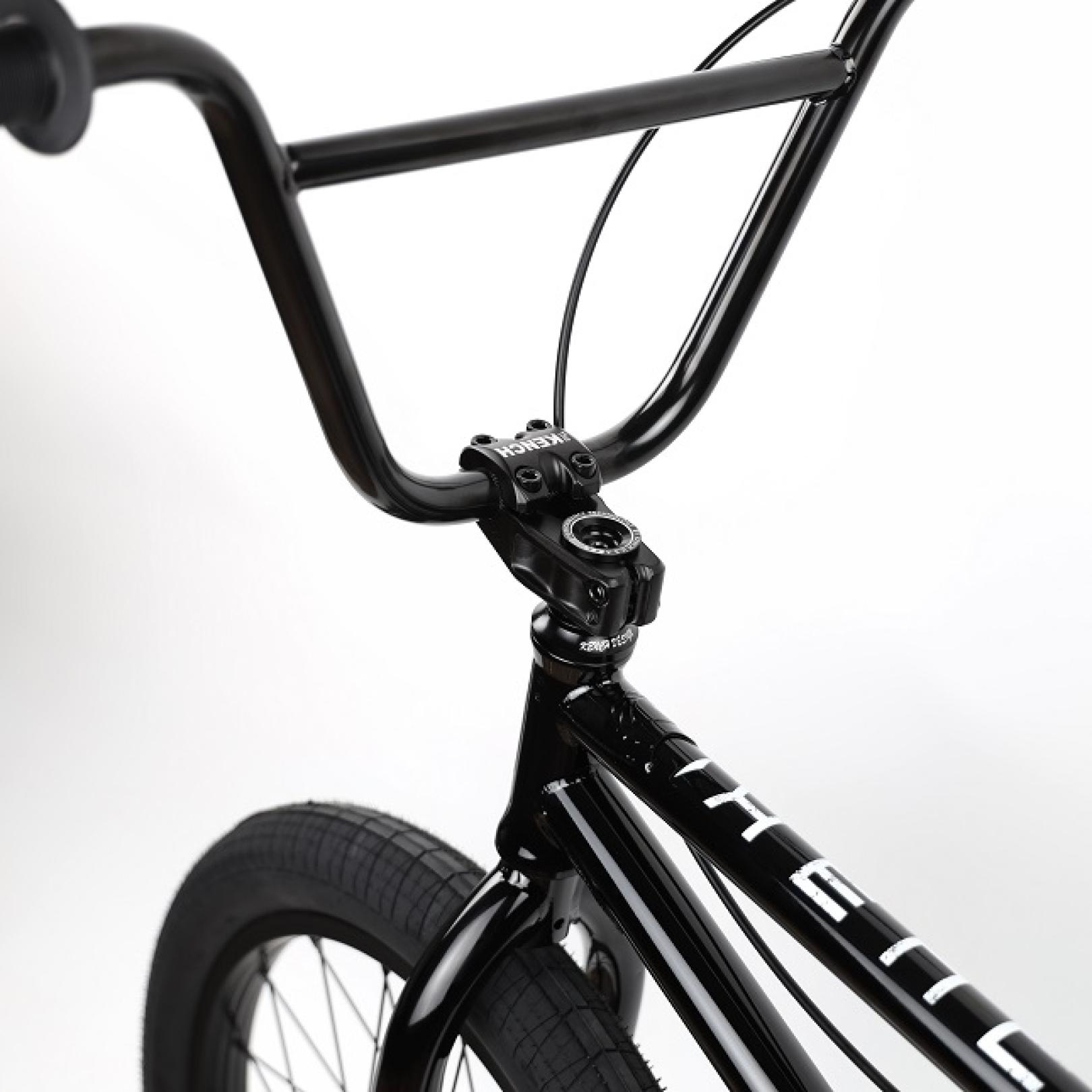

HANDLEBAR : KENCH STEEL.760*230*22.2MM
-
GRIPS : KENCH RUBBER,140MM,INSIDE Ø22MM.W/FLANGE
-
STEM : KENCH ALUMINUM ALLOY 1 1/8" THREADLESS CLAMP-ON , TOPLOAD,HANDLEBAR-Ø22.2MM
-
HEADSET : KENCH 1-1/8”/41. SEAL BEARINGS
-
BRAKES & LEVERS : KENCH ALLOY REAR U-BRAKES, ALLOY LEVERS
-
CRANK : KENCH CHROMOLY 170MM, 3-PIECE CRANK,31.8MM SQUARE SHAPEARM. 8T-19MM
-

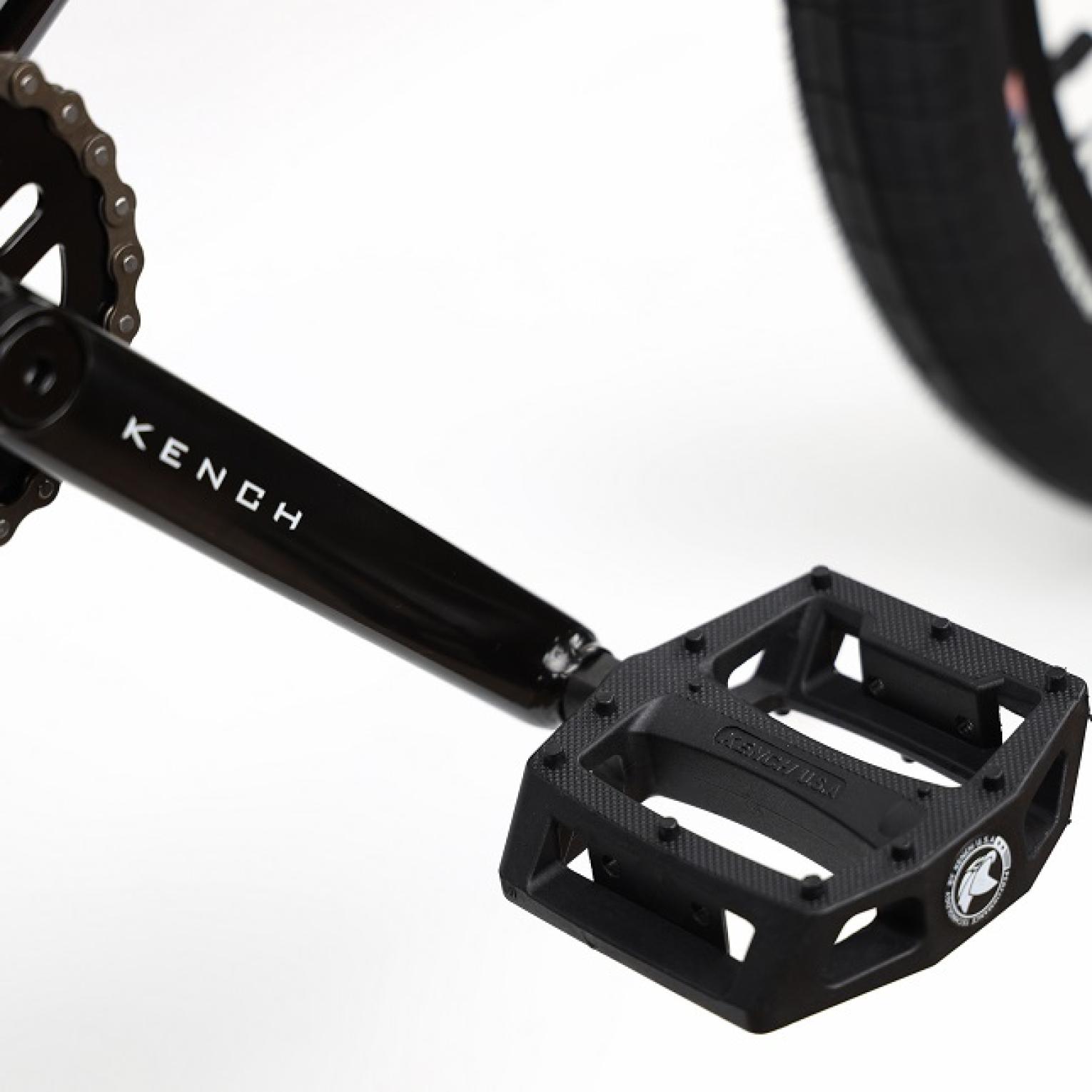

PEDALS : KENCH NYLON FIBER/CR-MO SPINDLE, 9/16" THREAD,BALL BEARING W/MOLD PIN
- CHAIN : KMC 1/2"X1/8" SINGLE SPEED
- SPROCKET : 1/8"STEEL. 25T , 2.5MM , BLACK

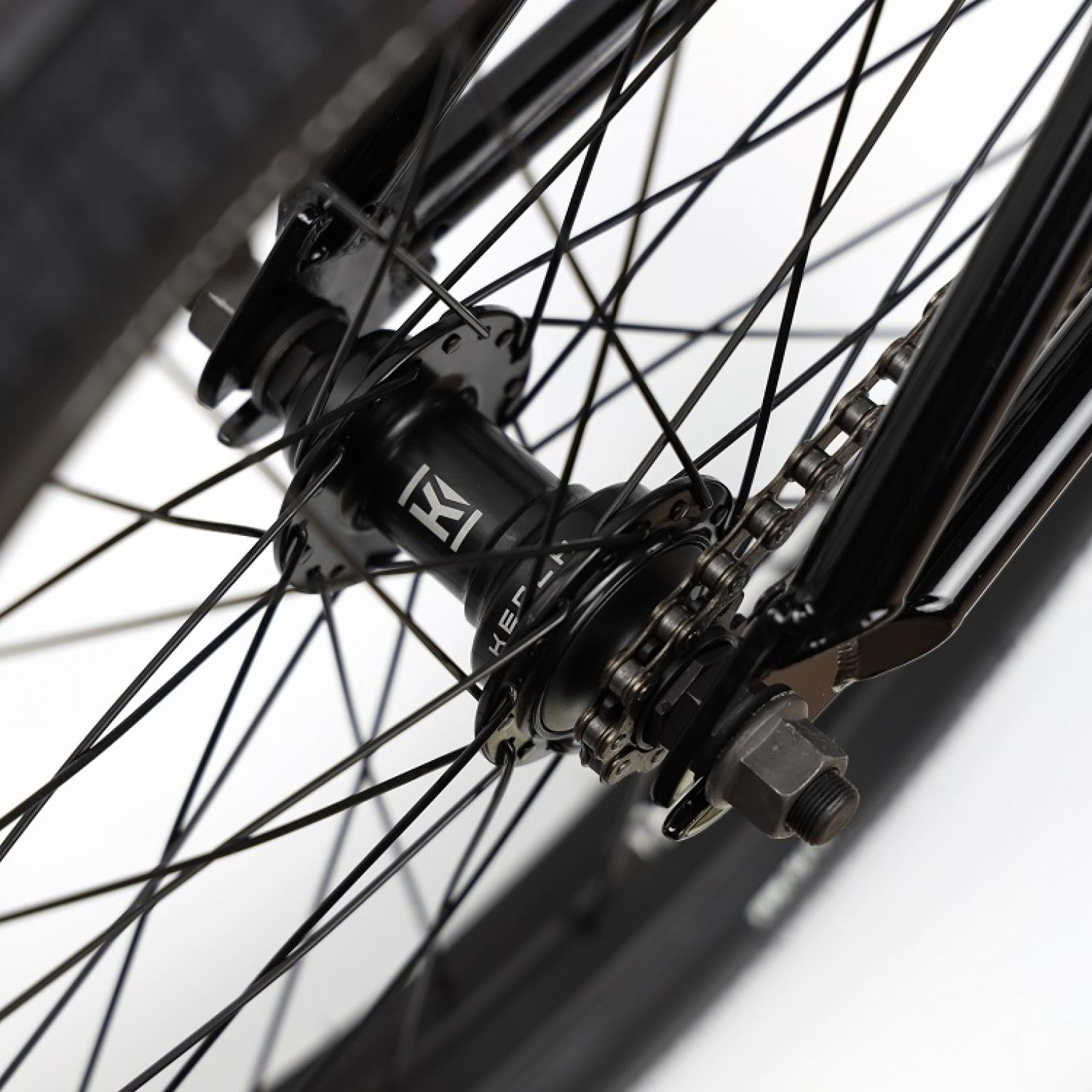

- FRONT HUB : KENCH ALUMINUM ALLOY CASE 3/8" CR-MO AXLE, BALL BEARING, 36 H
- REAR HUB : KENCH ALUMINUM ALLOY 14MM CR-MO AXLE , SEALED BEARING + BALL BEARING, 36 H, 9T FREEWHEEL
-
RIMS: KENCH ALUMINUM ALLOY, DOUBLE WALL ,20"(406-28)X36HX14G A/V
-
SEATPOST : KENCH ALLOY BLACK, 25.4 X 135MM , PIVOTAL SYSTEM
-

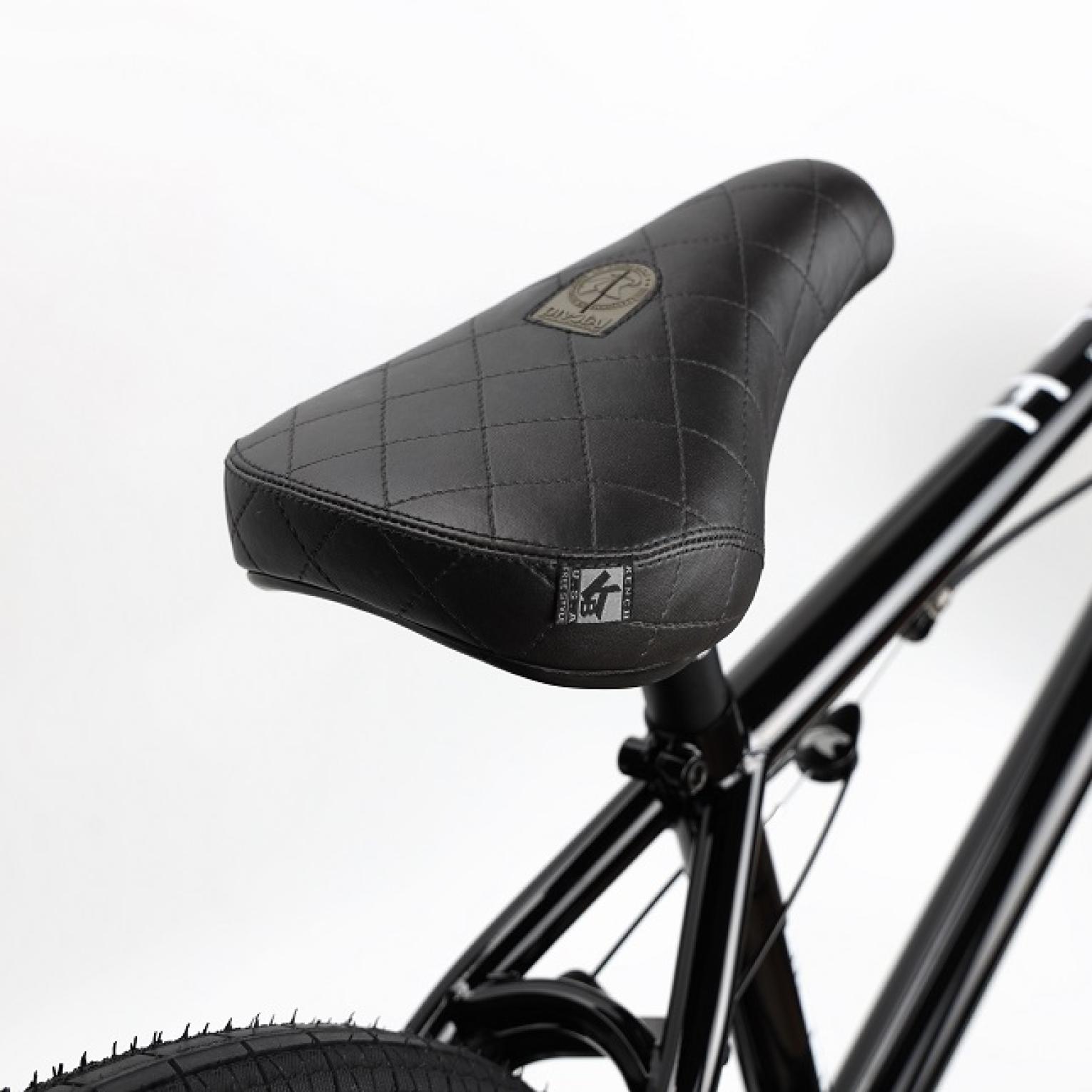

SADDLE : KENCH PIVOTAL SADDLE
-
TIRES : KENCH 20"X 2.35 30TPI-65PSI
- WEIGHT : 13.00 KG
- COLORS : GLOSSY BLACK / MATT BLACK / MATT ARMY GREEN / MATT ARMY YELLOW / MATT YELLOW / MATT PURPLE / GLOSSY PURPLE / MATT BLUE / MATT MIAMI BLUE / GLOSSY FERRARI RED

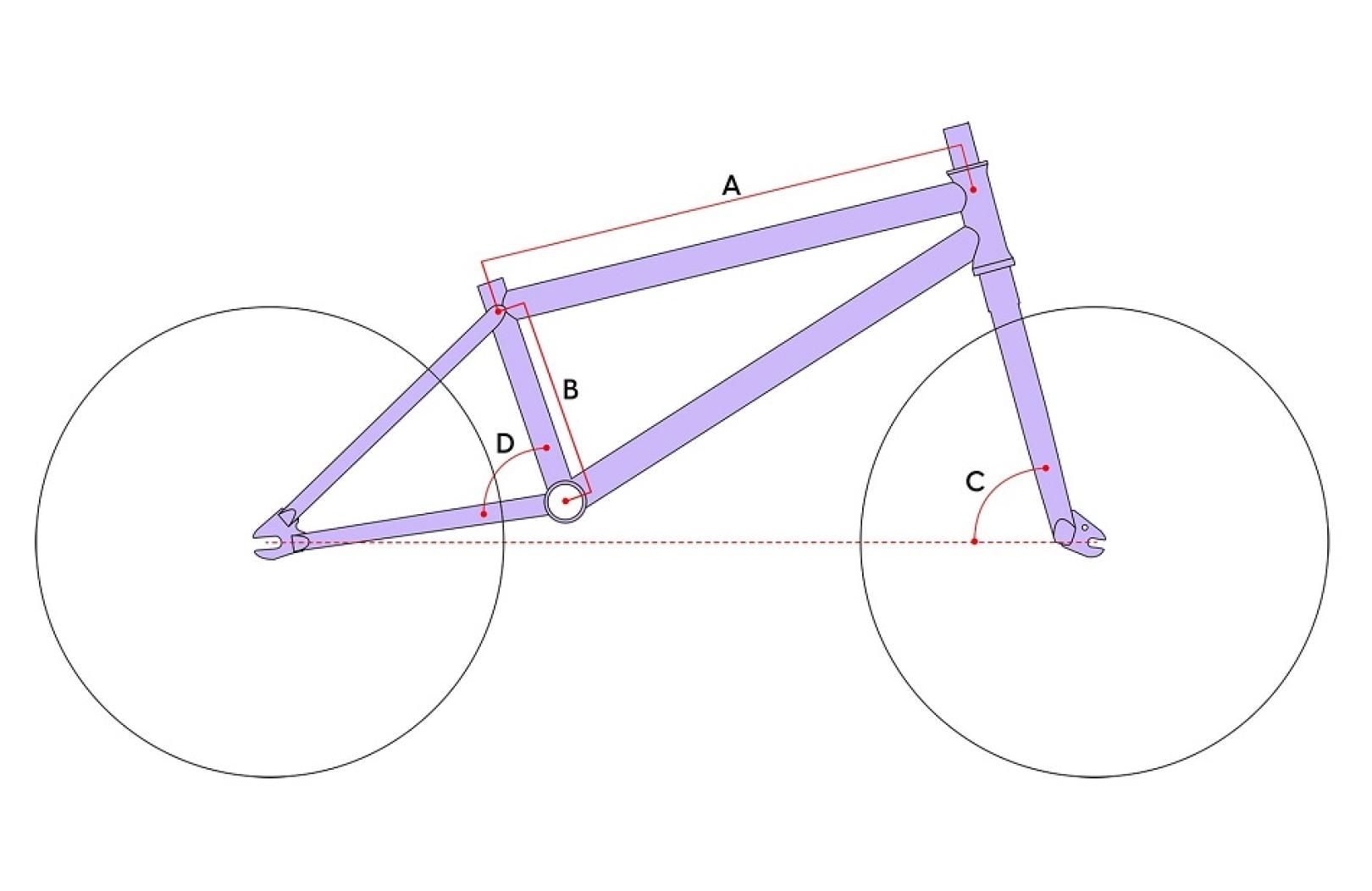

FRAME GEOMETRY
A - TOP TUBE LENGTH : 20.5" / 20.75" / 21"
B - STANDOVER HEIGHT : 8.74"
C - HEAD TUBE ANGLE : 76.25°
D - SEAT TUBE ANGLE : 79.6°
E - CHAIN STAY LENGTH : 13.22"

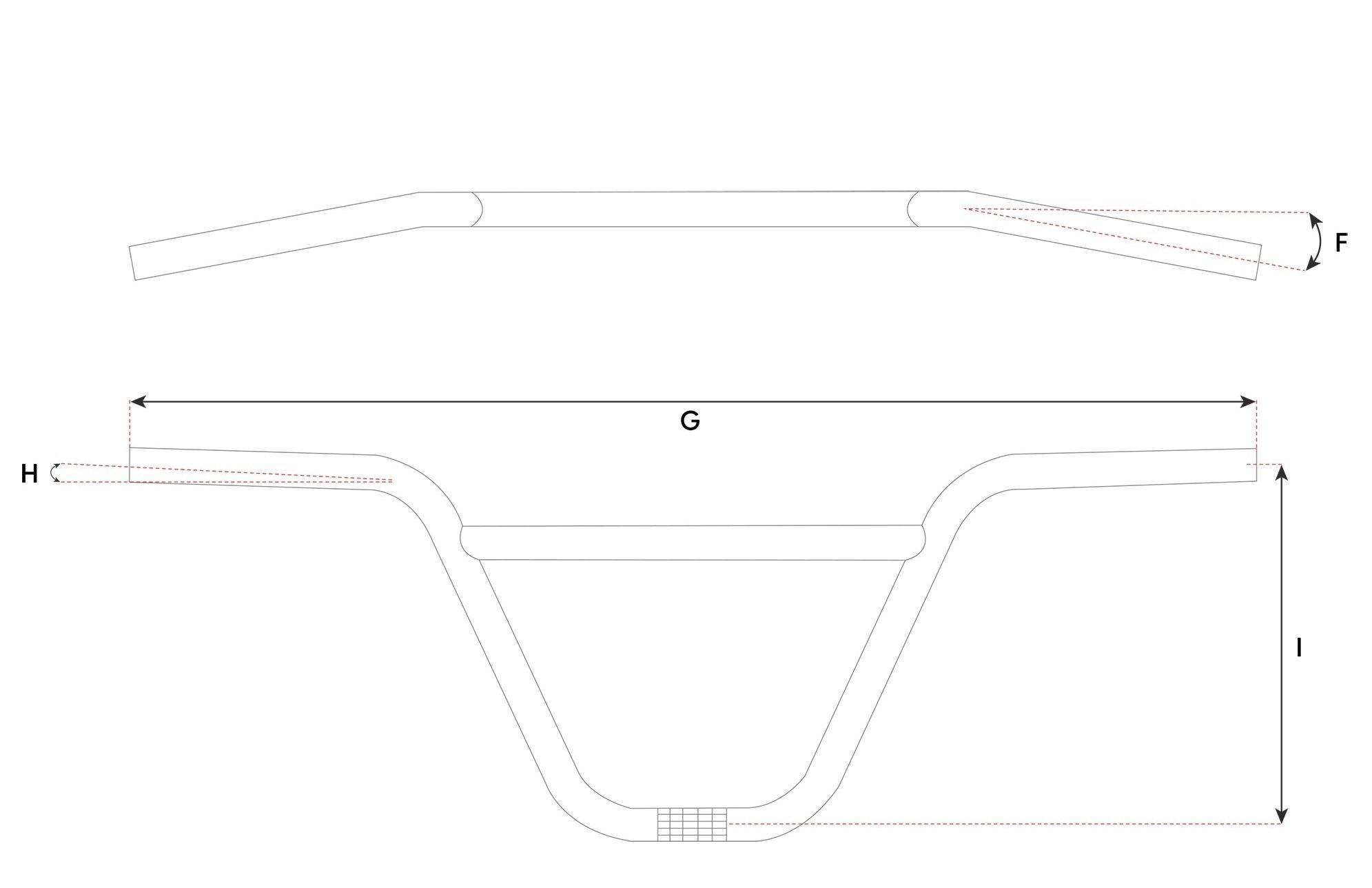

HANDLEBAR GEOMETRY
F - BAR BACK SWEEP : 11.5°
G - BAR WIDTH : 29.92"
H - BAR UP SWEEP : 1.5°
I - BAR RISE : 9.06"
-
__24L23b0g0R.jpg)

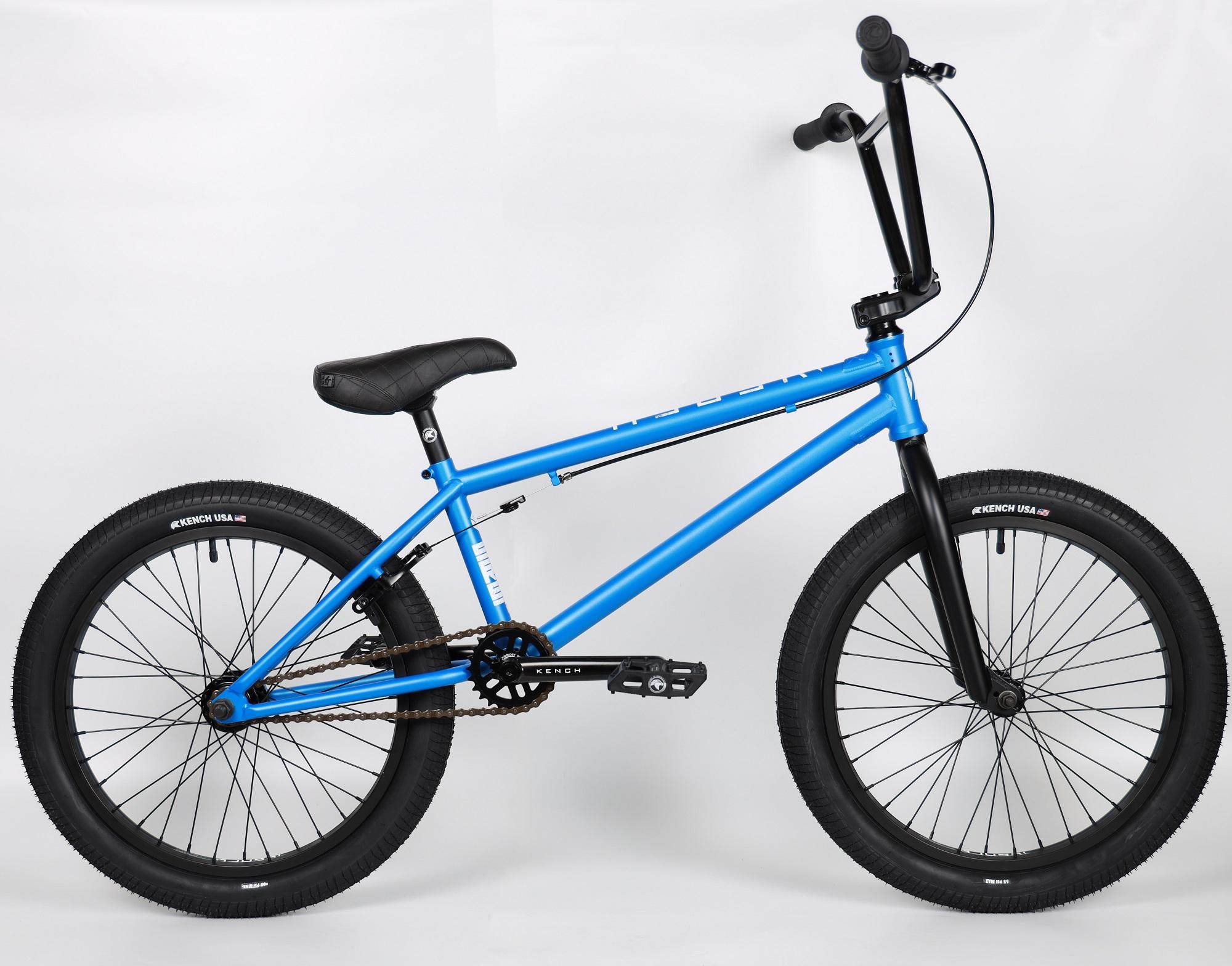

MATT MIAMI BLUE
-

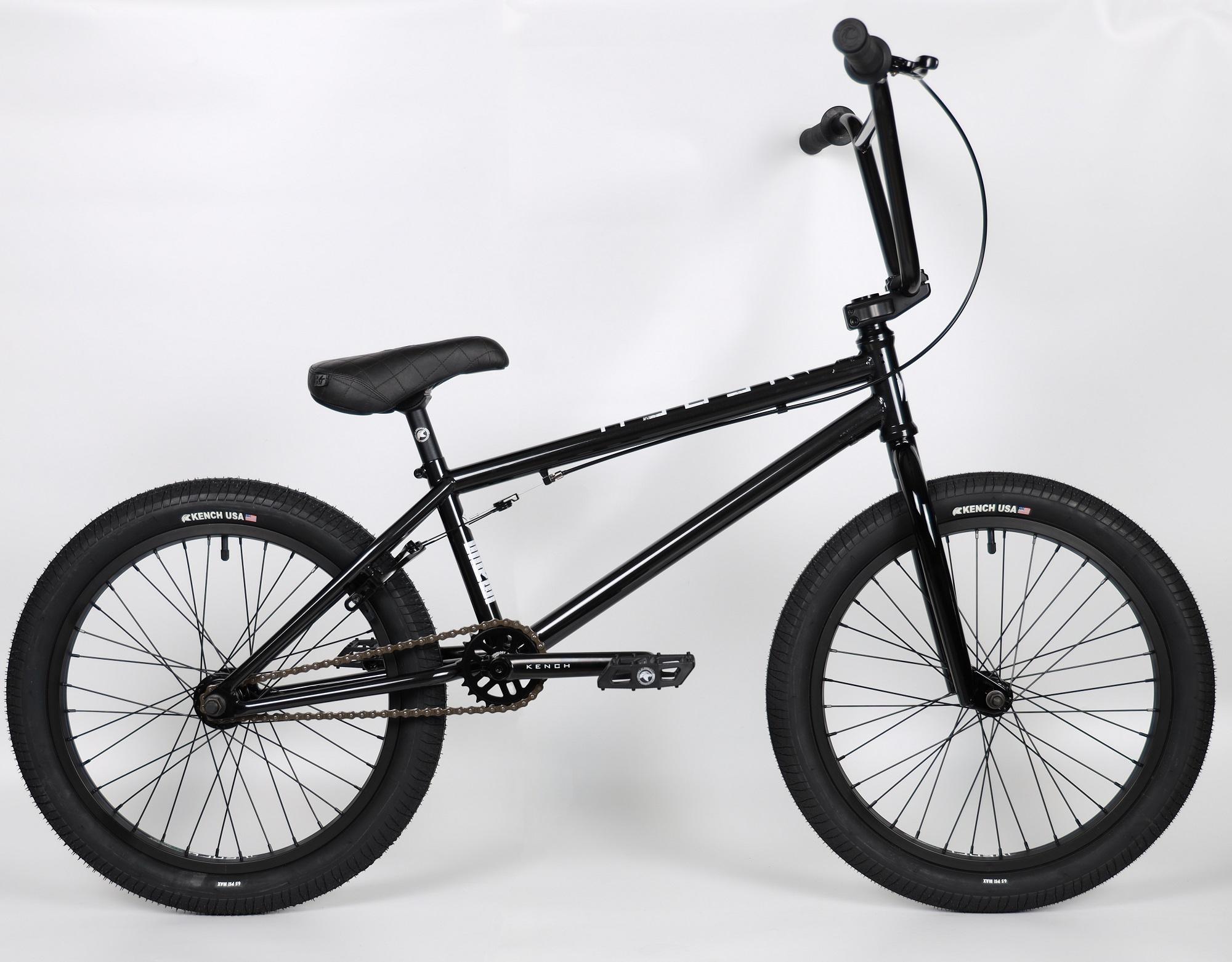

GLOSSY BLACK
-

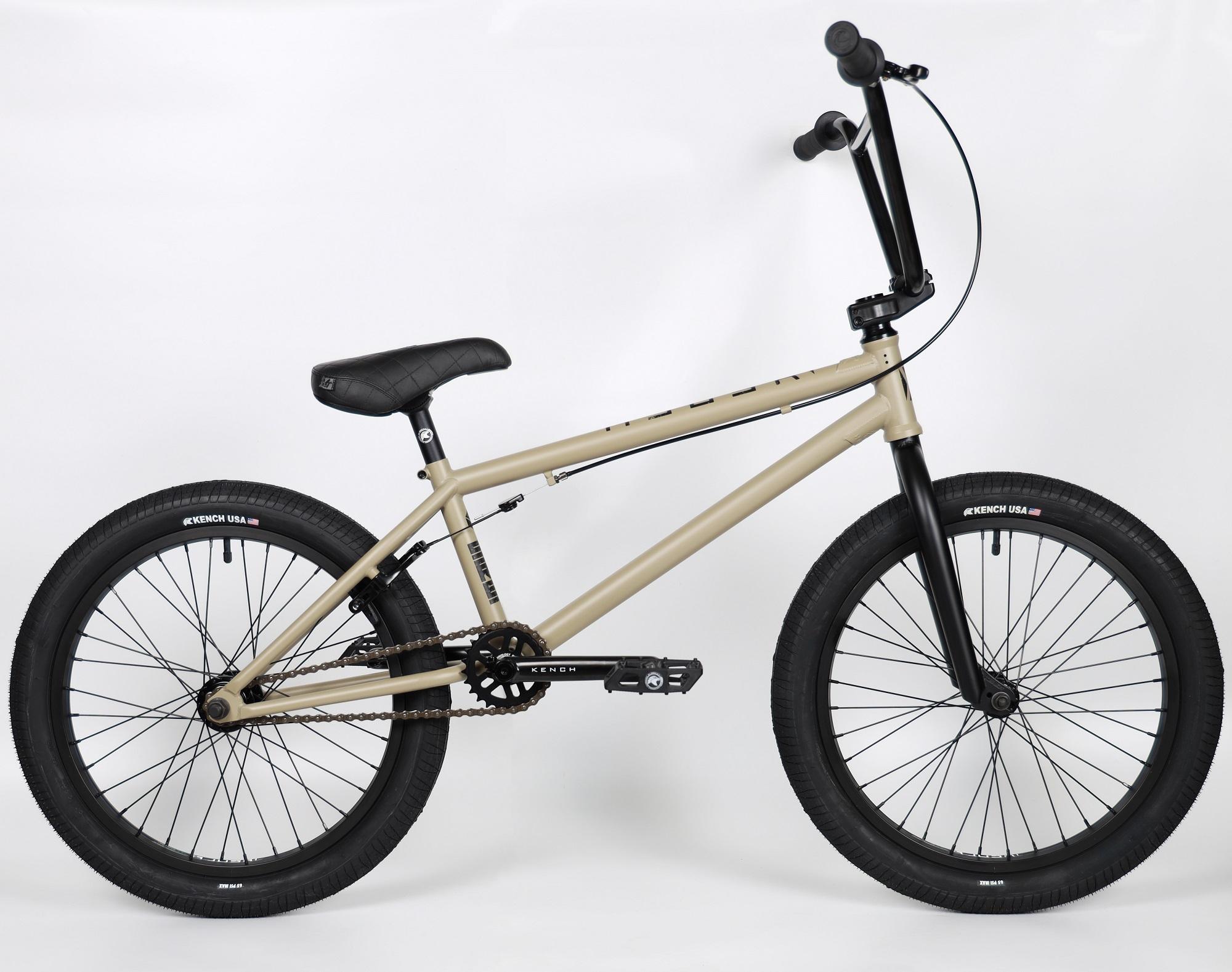

MATT ARMY YELLOW
